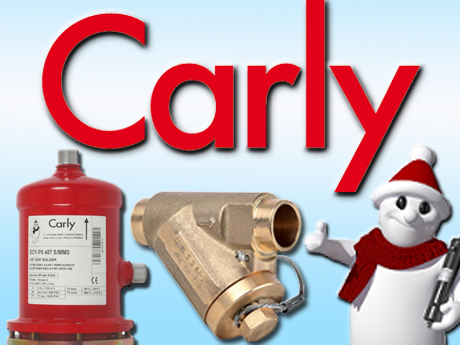

Carly High Pressure Components for Carbon Dioxide Systems


An expanding range of components suitable for high pressure applications such as carbon dioxide systems in subcritical and transcritical. More information in the attached Carly catalogue but in brief:

Recognizing the unique properties of carbon dioxide as an increasingly popular but demanding refrigerant Carly have been developing a range of components specially adapted to the much higher working pressures encountered in these systems. Being added to all the time the present models include:

DCY P6 and P14 Anti-Acid Filter Driers
For the filtering and drying of refrigerants and acid neutralization for liquid lines of refrigerating and air conditioning installations running with high working pressures.

DCY-P6 (64 bar / 928 psig) and DCY-P14 (140 bar / 2030 psig)

BCY P6 and P14 Filter Drier Shells
Refrigerant filtering and drying and acid neutralization for refrigerating and air conditioning installation liquid lines running with high working pressures. The replaceable core filter drier shells allow the replacement of the filter drier's active part only.

BCY-P6 (64 bar / 928 psig) and BCY-P14 (140 bar / 2030 psig)

SCY P6 and P14 Line Mufflers
Discharge line mufflers for the reduction of noise caused by gas pulses in the discharge lines of refrigerating and air conditioning installations running with high working pressures.

SCY-P6 (64 bar / 928 psig)and SCY-P14 (140 bar / 2030 psig)

HCYF P6 and P14 Oil Filters
For oil filtering on the oil return line to the compressor sumps of refrigerating and air conditioning installations running in high working pressures.

HCYF-P6 (64 bar / 928 psig) and HCYF-P14 (140 bar / 2030 psig)

CRCY-P9 Check Valves
A range of check valves to ensure a one-way direction of the refrigerant flow in refrigerating and air conditioning installations running with high working pressures.

CRCY-P9 up to 90 bar for CO2 in Subcritical and Transcritical compression Systems.

FILTRY-P9 (up to 90 bar)Dirt Filters
Dirt filters for permanent refrigerant filtering, regulation and expansion element protection in CO2 in subcritical and transcritical compression systems.

Oil Separators
TURBOIL - R - P14 which is a high pressure oil separator receiver up to 140 bar.
